Model
PC360

Review

Description

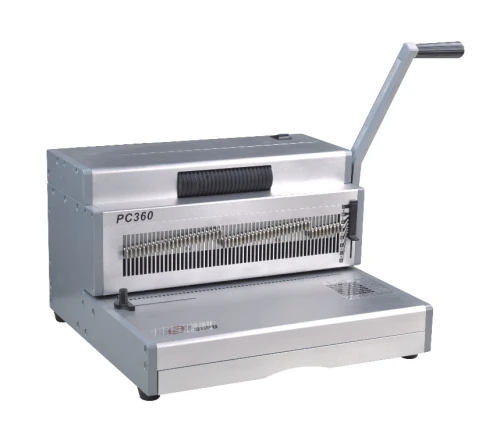

This our our patent coil binding machine,it is manual punch and electrical bind,the feature about this machine is the width is 360MM,suitable for the european using,this machine have 56 adjustable punch pins,so you can pull out the punch pins that you don't want to punch and do not damage the hole.

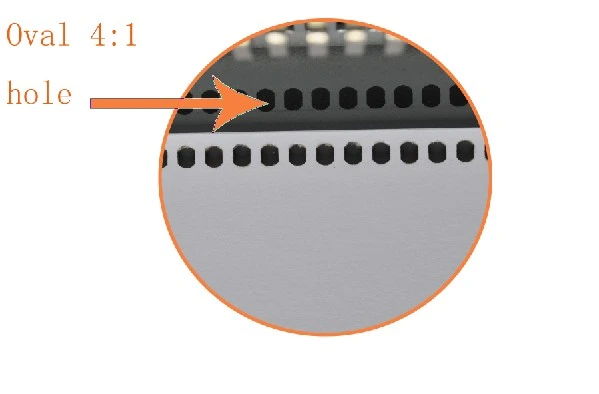

New 4:1 Oval hole
360mm punching width
Punching thickness:25sheets
Pitch:6.287mm
Disengagement punch pins:56
Binding thickness:180sheets
Power of biniding:110v-240v;50Hz/60Hz/30w
All aluminium construction

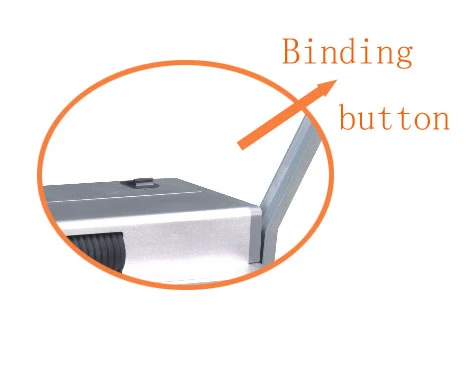

Electrical binding,can save your time

Adjustable and patent design punch pins,easily operating

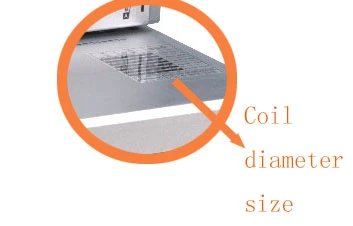

This coil mark can hlep you to choose suitable coil for your binding,

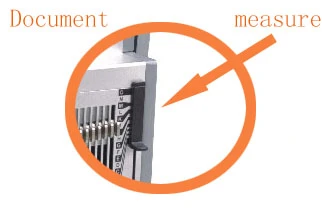

The docuemnt measure make you to know the thickness of paper you want to punching,and do not over load the machine.

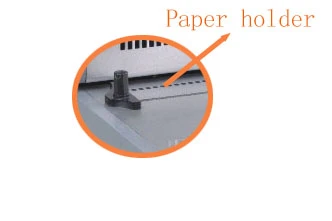

The paper holder make you to fix the paper,and you can choose the measurement you wanted.

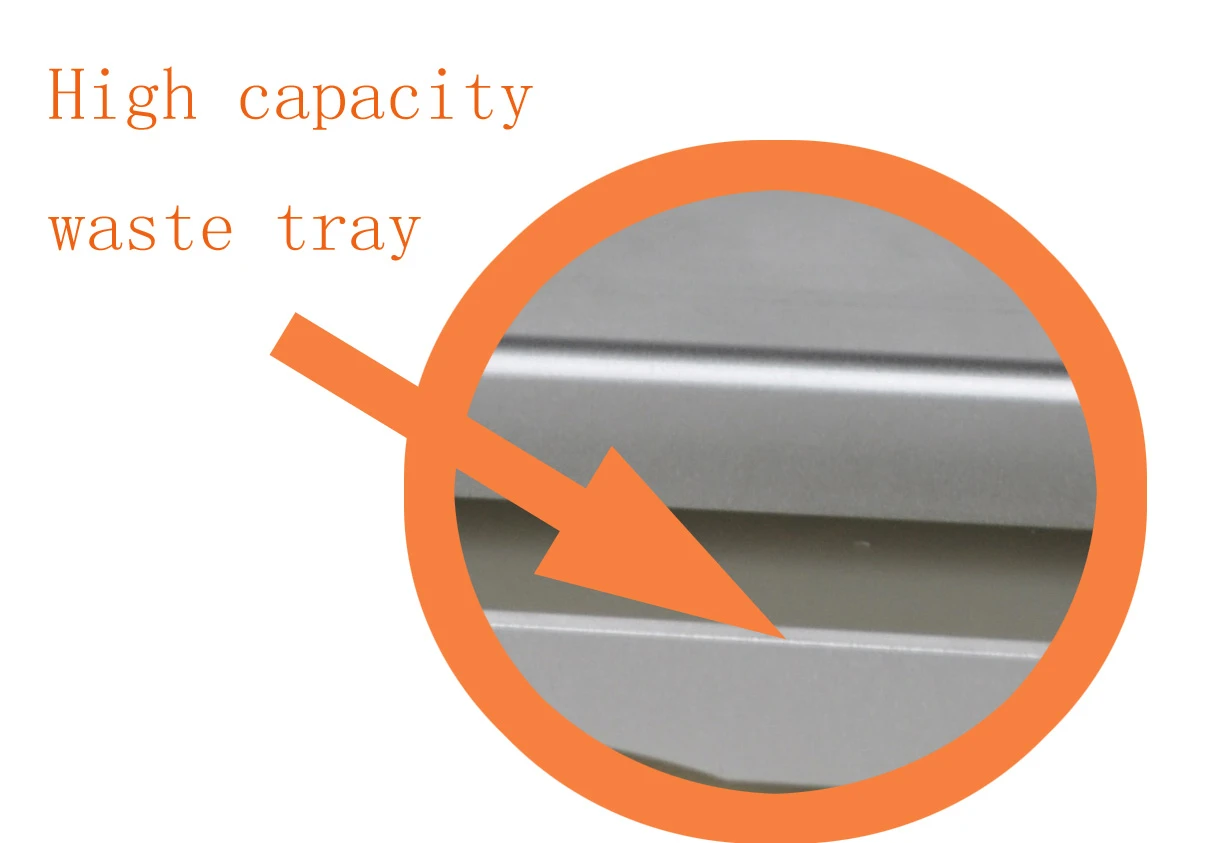

The aluminum surface weste tray of the high capacity,can make you use it for a long time and save your clearing time.

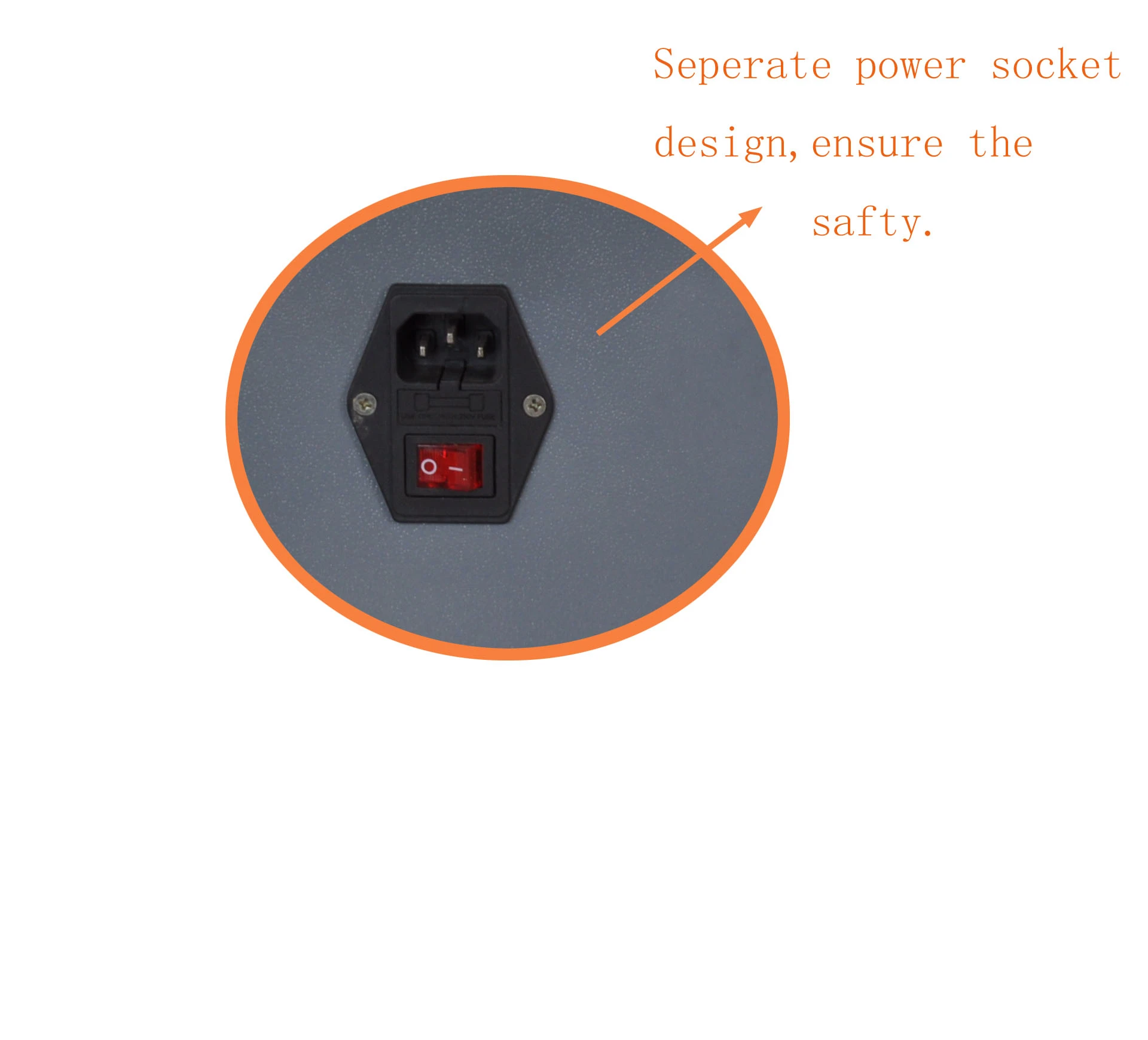

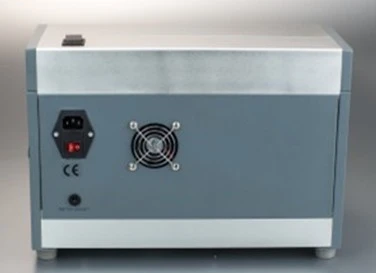

Seperate power socket make youe use it safely,also can increase the time of the using

This picture  is the punch result about this nmachine,very smooth.

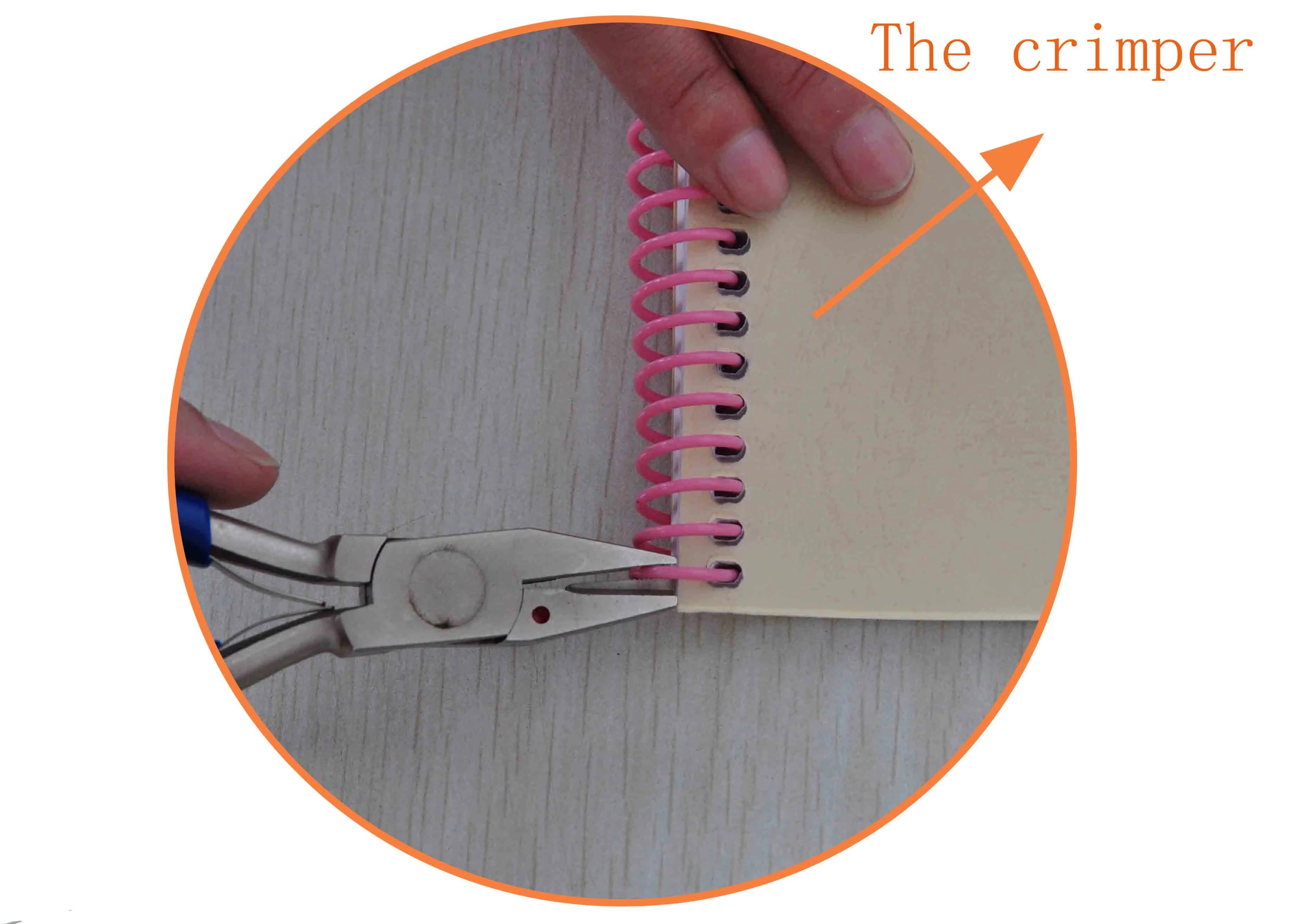

We supply the crimper  without charge,make you use with out worry.

This is the  general package,we can supply the colour mark on the outer box according the the require.Some machine we have the colour box.

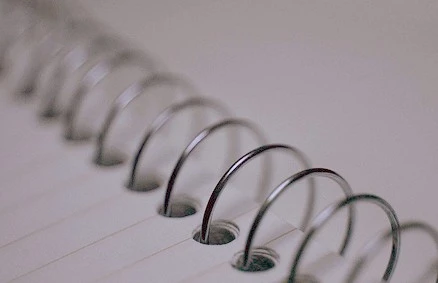

This is the binding result about this machine,we also have the comb and wire binding machine,welcome to perchase.

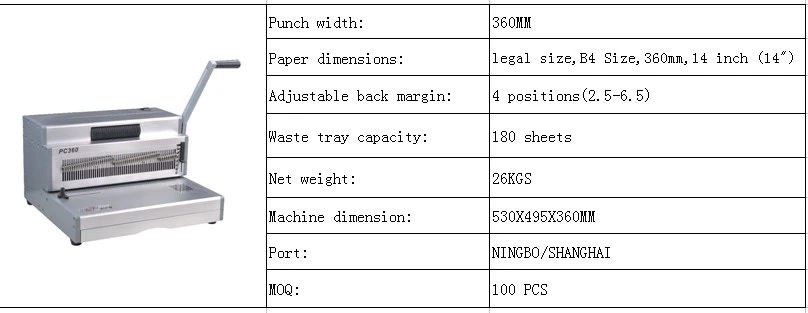

The technical data:

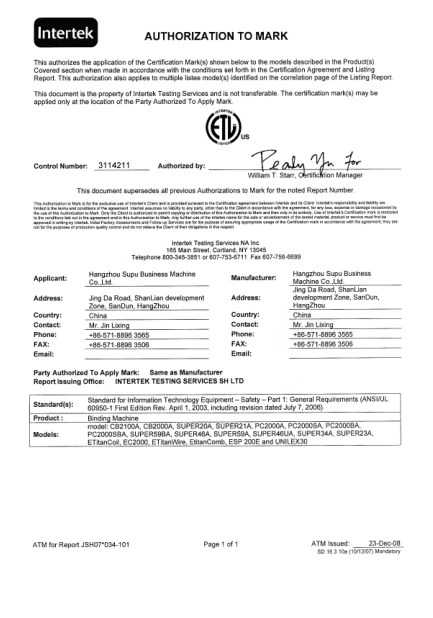

The ETL certificate about this machine:
