Hard Cover Heavy Duty Electrical Spiral Binding machine PC360E
- Model
- spiral binding machine
Item specifics
- Power
- Electricity
- Width
- 360mm
- Pitch
- 6.287mm
- Hole type
- round, oval
- Punching thickness
- 25sheets
- Binding Thickness
- 180sheets
- Number of punch pins
- 56
- Disgagement punch pins
- 56
Review
Description

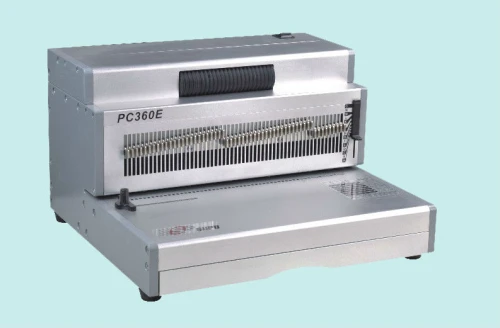

heavy duty spiral binding machine PC360E
powerful punching capacity
powerful binding capacity
4:1pitch 6.287mm
width:360mm
punching thickness:25sheets
disengagement punch pins:56
number of punch pins:56
binding thickness:180sheets
motor:230v,50Hz/200w;110v,60Hz/200w
side margin is adjustable to select which format sheet to punch
depth margin is adjustable to suit the size of coil being used
all aluminium construction make it durable and many years worry free
Technology Data
| MaxBind Capacity (20# paper) | 450Sheets |
| Max Punch Capacity (20# paper) | 25Sheets |
| Binding Format | Coil |
| Punching Method | Electric |
| Binding Method | Electric |
| Punching Format (Vertical/Horizontal) | Horizontal |
| Punch and Bind Capability | Yes |
| Max Punch Length | 360mm |
| Max Binding Length | 360mm |
| Number of Punch Pins | 56 |
| Disengageable Die Pins | 56 |
| Waste Compartment | Yes |
| Side Margin Control | Yes |
| Motor | 110V,60HZ/120W 230V,60HZ/120W |
machine detail
Dcument masure:according to your files thickness to pick the right number of sheets to punch,don't exceed the maximum number of allowed
Punch and bind button: control by electric make punching and binding easier
Roller: power roller make your binding easy
selectable paper stop:according to you files' zise, select paper positon ,keeping sheet aligning
waste tray easy for tidy
The binding steps
sample room
Certification
