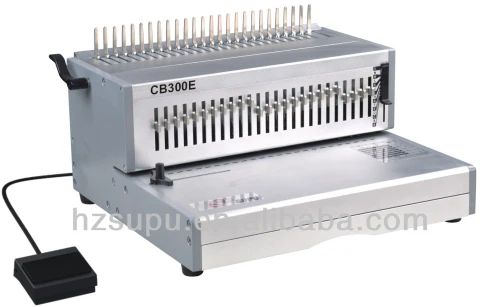

Model
CB300E

Item specifics

Type
Comb Binding Machine
Power
Electricity
meterial
aluminum

Review

Description

Plastic Comb Binder Strip MachinePunching capacity:

Paper sheets: punching up to 30sheet for 70-80g/20lb

Transparent covers:punching up to 4 sheet for 100-200micron/4-8mil, 3 sheet for more than 200micron/8mil
other standard covers:punching up to 4 sheet for 160-270g/40-60lb and 3 sheet for more than 270g/60lb
Punching Width:300MM

binding capacity:
max binding comb size:51mm
max document(80/20lb):approx.500sheets
Pitch:14.25MM
Disengagement punch pins:21
Number of punch pins:21

Feature:
Electric punch and manual binding

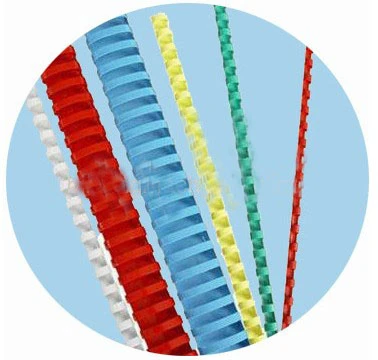

Use all size of plastic comb from 6mm-50mm
Side margin is adjustable to select which format sheet to punch
Depth margin is adjustable to suit the size of comb being used
All aluminium construction make it durable and many years worry free
Motor:230v,50Hz/120w; 110v,60Hz/120w


Products details:

Document measure : measure you sheets thickness aid to select right comb size
Plastic Comb Binder Strip Machine


Binding handle:alloy construction make it durable
Plastic Comb Binder Strip Machine


Punch selection: full disengagementpunch pins for US letter, A4,A5,B5 format size and smaller paper size
Plastic Comb Binder Strip Machine
Waste tray: large volume waste tray make you continuious work without empty punched times

Plastic Comb Binder Strip Machine

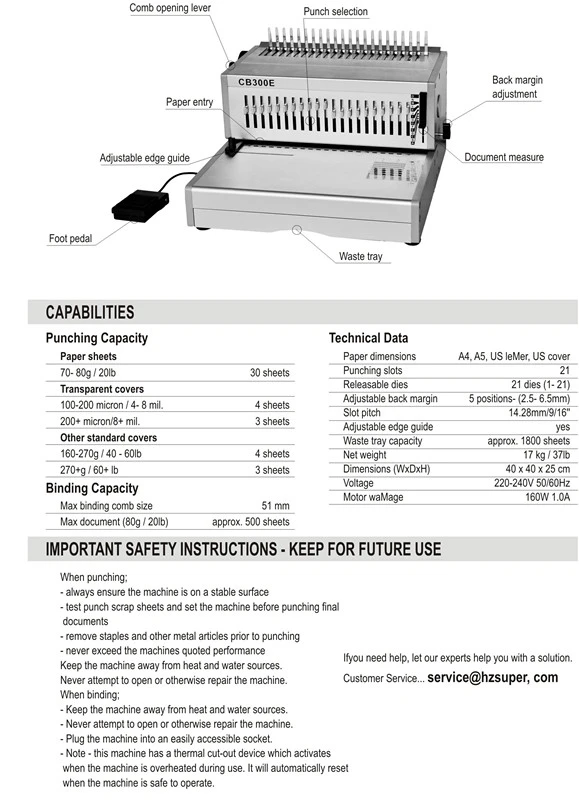

Technical Data

Paper dimensionsA4,A5,US letter,US cover
Punch slots21
Releasable dies21dies(1-21)
Adjustable back margin5positions(2.5-6.5mm)
Slot pin14.28mm/ 9/16"
Adjustable edge guideyes
Waste tray capacityapprox.1800sheets
Net weight17kg/37lb
Dimensions40X40X25mm
Voltage220-240V 50-60Hz
Motor wattage160W,1.0A

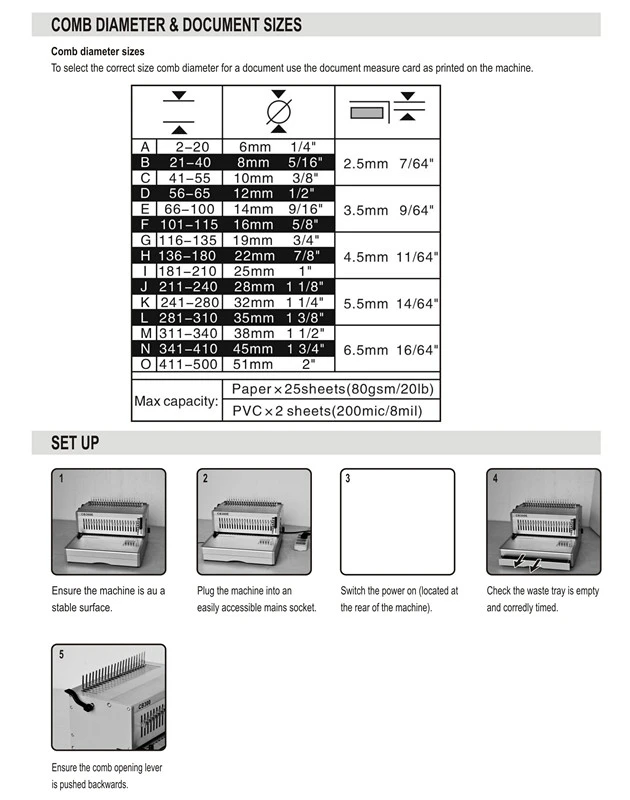

Instuctions for A4 Paper Electric Comb Binding Machine CB300E

This is the guide ofhow to use and maintain this bindingmachine to keep for a long life


Plastic Comb Binder Strip Machine

Plastic Comb Binder Strip Machine
Plastic Comb Binder Strip Machine

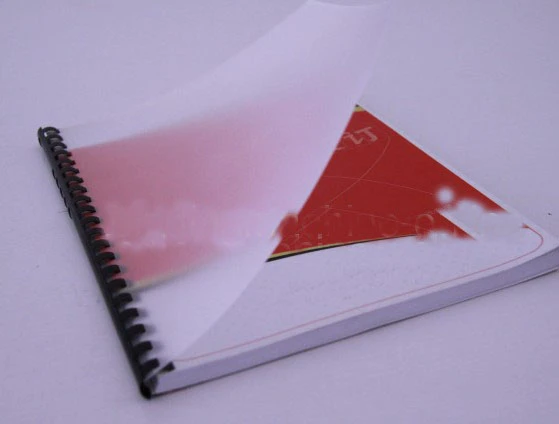

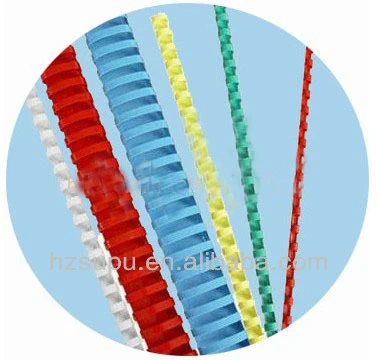

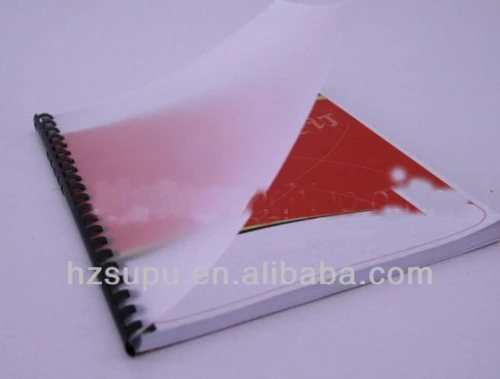

Accessory and finished goods

hard cover&pvc


 Plastic Comb Binder Strip Machine



Plastic Comb Binder Strip Machine


Plastic Comb Binder Strip Machine

Packing and shiping:

Plastic Comb Binder Strip Machine


Plastic Comb Binder Strip Machine

Sample room
