New design multifunction binding machine with comb wire spiral coil and punching SUPER4&1

PRODUCT DESCRIPTION

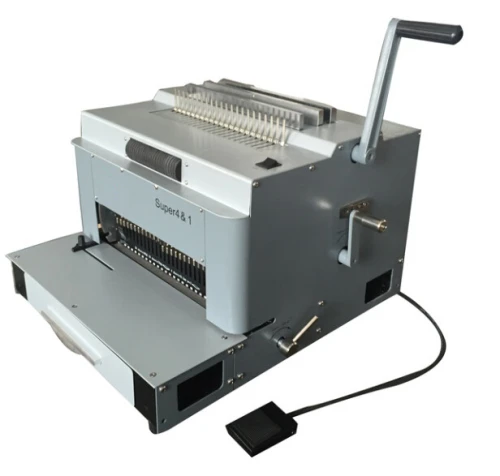

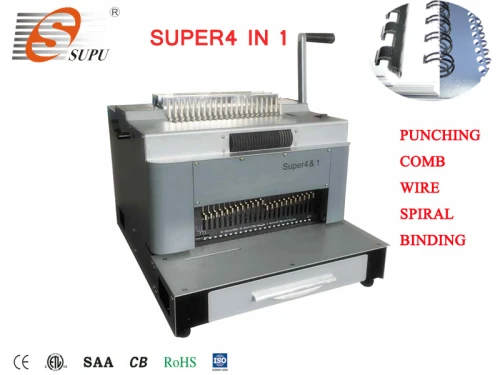

One machine with four function: Punching, comb binding, wire binding, spiral binding
Punching dies can change easily, by rock switch on right of machine
Contain 4 different punching dies. 4 different hole type
This machine combine 4 function into 1 machine, more comvenient, less space Very suitable for print shop, print industry, even factory For book binding punching, notebook. F
ile Good quality, metal material, one machine weight 100kgs


FEATURES
Electric punching and binding by the footpedal.
Punch capacity: Up to 22000 sheets of 20 lb paper for an hour Punching up to 30-35sheets each time
Can punch A4 A3 SIZE paper Fully disengageable pins
Adjustable depth margin Punching margin &side margin is adjustable
Heavy duty motor and gearbox With comb binding, wire closing, coil inserting Interchangeable punch die by manual revoving or electric revolving.
International patent design
All metal construction makes it durable and many years free With CE, CETL. SAA certification
Punching 2: 1, 3: 1, 4: 1(5: 1), Comb, Calendar
With wire closer, calendar binding, coil feeder and comb binding

TECHNOLOGY DATA

ItemPlastic combDouble wire                 (2:1&3:1)Spiral(Oval)                         (4:1)
Punching thickness of sheets 25sheets(70 g) 20sheets(80g)25sheets(70 g) 20sheets(80g)25sheets(70 g)
Punching thickness of PVC Cover 4 sheets(0.2mm)4 sheets(0.2mm)4 sheets(0.2mm)
Punching thickness of 230g Cover4sheets 4sheets 4sheets
Binding thickness4.5mm~51mm15.9mm~32mm(2:1)  4.8mm~14.3mm(3:1)4.5mm~50mm
Punch width297mm
Die disengagement pinFull(21 pins)Full 2:1(23 pins)    3:1(34 pins)Full (47 pins)
Punch margin adjustable2mm~6mm
Continual punch pages2500 pages/minute ~ 3000 pages/minute
Power supplyAC220V-240V      50Hz
Electromotor power200W
Machine dimension612mmx510mmx394mm
Machine wight90KG

INSTRUCTIONS FOR INSTALLATION AND ADJUSTMENT 1,Place the machine on workbench after opening the case, make sure it is steady on four feet. Connect the power socket and foot pedal joint  2,Assemble comb binding handle, wire binding handle to make it is nearly 90°to the top of base and then assemble the lock handle and die-changing handle and make the lock handle stay at the lock up position .

METHOD AND PROCEDURE TO CHANGE PUNCHING DIE 1,Cut off power supply, unlock die locking-handle ( See above drawings )
2,Pull out the Die-changing handle while revolving it 360°clockwise.
3,Release the Die-changing handle and lock up the Lock-handle

METHOD AND PROCEDURE TO PUNCH

1.Following above method to choose right punching die 2.Accroding to the paper's size, adjust side margin and paper fixer to suitable position. 3. Turn on power and try to put little paper and then treat the foot pedal to do a testing .

a)Operation instructions and use method for double wire(2:1,3:1) 1,Choose right punching die for double wire (2:1 or 3:1). According to paper's size choose paper fixer and side margin controller. Insert paper then treat foot pedal to finishing punching. 2,Adjust two adjustable knobs according to size of wire 3,Closing the wire by using the closing handle .

b) Operation instructions and usage for Spiral 1,Choose the right punching die for Spiral.  According to paper's size choose paper fixer and side margin controller. Insert paper then treat foot pedal to finishing punching. 2,Inserter the coil to the punched sheets by handle in the first circles then press roller button to make roller run then lean the coil against the roller to make it inserting automatically . 3,Cut and crimp the coil with plier attached with machine ,completing the binding

c) Operation instructions and usage for comb 1,Choose the right punching die for comb. According to paper's size choose paper fixer and side margin controller. Insert  paper, then treat foot pedal to finishing punching. 2,Place plastic ring in back of comb with opening upward, pull down the binding handle  clockwise to open the comb . 3,Place the punched sheets into the comb then push the binding handle upward counterclockwise to finish binding . 4,If sheets need to be increased or decreased follow step 2.After it follow step 3 to binding

POINTS FOR ATTENTION
1.Power supply should meet requirement of the machine. 2.Cut off power supply when change punch die to prevent accidents by mistake and  unnecessary loss. 3.Punch thickness should not be exceeded according to the manual. Adhesive material is forbidden in case of blade damage.

ELECTRIC APPLIANCE
1,Turn on power switch before starting the machine. Indicator light should be on. 2,Put paper into the punching slot and put your foot on foot pedal. The machine's punching pins move up and down one time while eaching treating the footpedal .

WARM SUGGESTION

1.  To make perfect punching effect and long time usage , please do not punch exceed the capacity on the
illustration of each punching die .
2.  While punching 230g cover ,please do not punch more than 4 sheet .Thanks .
