Electric A3 size paper and calendar punching machine E (SUPER430M)
Electric A3 size paper and calendar  punching machine E (SUPER430M)
Electric A3 size paper and calendar  punching machine E (SUPER430M)
Electric A3 size paper and calendar  punching machine E (SUPER430M)
Model
SUPER430M

Item specifics

Model
SUPER430M
Punching width
430mm
Punching size
A3 A4 letter size legal size
color
silk
matrial
metal
change die
yes
Punching thickness
20-25 sheets

Product review

Description

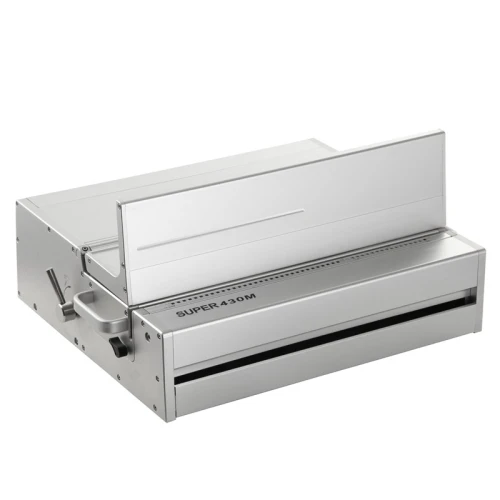

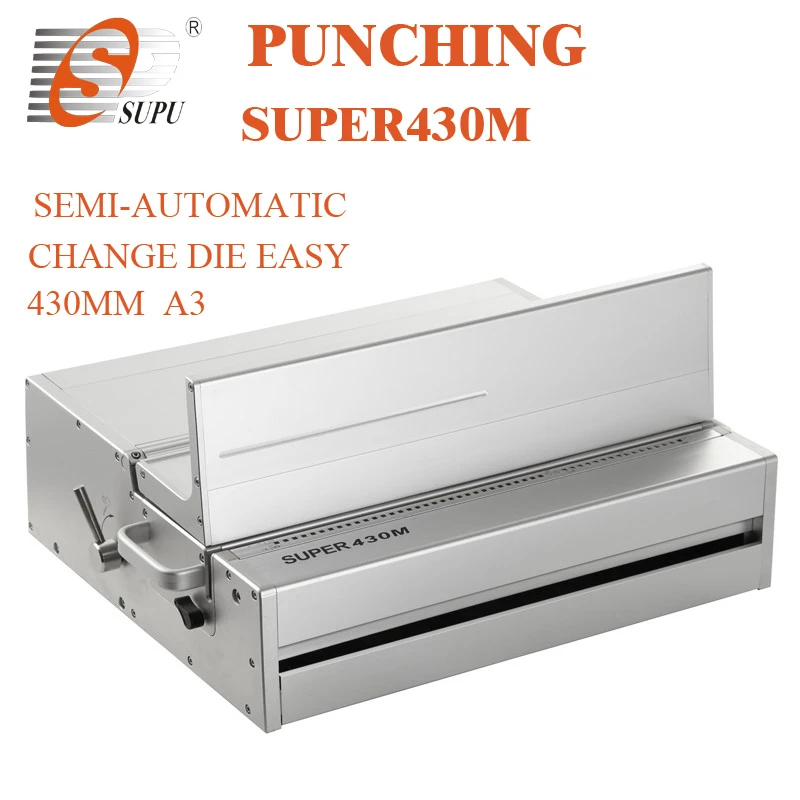

Desk-top electric Calendar Punching Machine with Interchangeable die SUPER430M


This Electric A3 size punching machine can Achieve a variety of punch holes by change different dies;

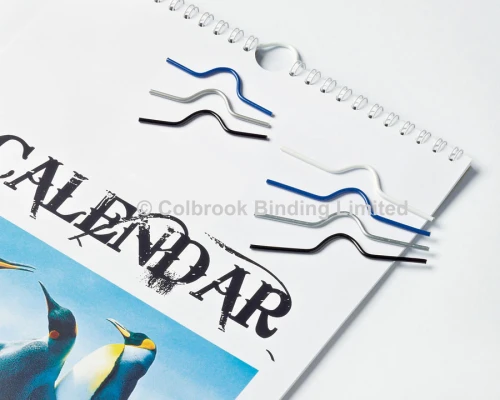

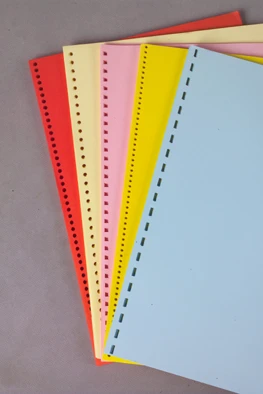

11 different dies to choose, contain restangle (comb), square (wire)  ,round,oval  (spiral)  calendar holes
easy operation of electric foot pedal ;Changing of dies is quick and easy;wide format can easy operation for A3 A4 size or large size paper
With One Standard Die is a electric operation punch machine
Dies can be changeable easily and quickly without tools
Can do 11" letter size or A4 sizes, and longer sheet sizes as well as 17"
This 17" Punching Machine With Interchangeable Dies SUPER430 is an ideal punching machine for everyday work requiring versatile punching for any job
A ideal binding parterner for schools, business offices, home use ,copy center



Product parameters:


Punching Width 430mm(17")
Punching capacity 20-25 sheets
Punching mode Electric by foot pedal
Punching speed :max 14000sheets/h (depends on operator)
Paper feedVertical

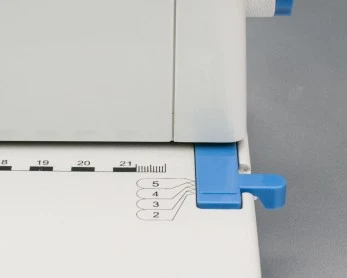

Punching margin Adjustabe from 2mm to 6mm
Machine weight 45kg
Machine dimension  590*440*300mm
Material Metal and aluminum
Certification CE ,CETL ,SAA ,CB ,SGS


Features:

Changing of dies is quick and easy,no need any tools

Working width: 430mm(17")

Punching capacity: 20~25 sheets depending on different dies (80g)

Punching speed:Max.14.000 sheets /hour(Depending on operator)

Vertical punching



DATA:

Type:Electric  punching machine

Width:430mm Punching width

speed: 14000sheets/hour

punching thickness: 20-25sheets

Pitch: can choose dies

Motor: 110V-240V 50/60HZ 20W

Dimension: 590*440*300mm

Weight: 45kgs

Die weight:10kgs

Packing: 1PC/2CASE

Die-disengagement pins: Full
Electrical consume:AC 110/240V 60/50HZ ,200W
Machine dimension(mm):180X485X280
All aluminum construction

CE ,CB ,ETL ,SAA Certification

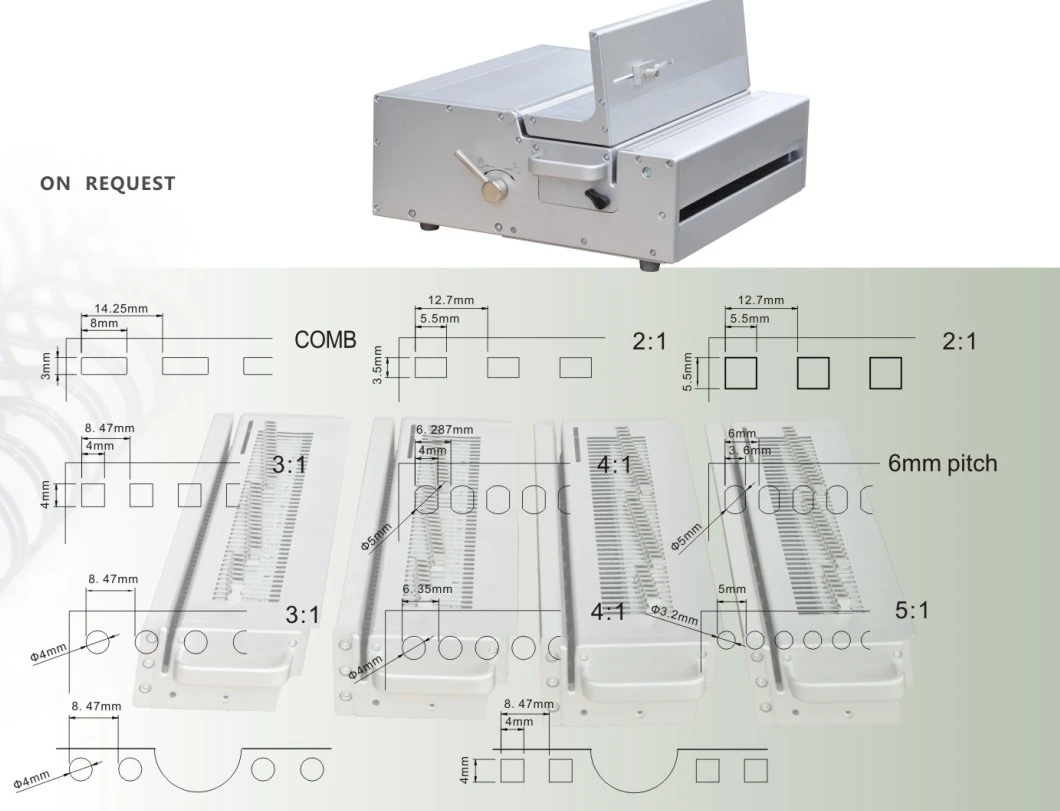

DIE PATTERN:
