Heavy Duty Electric A3 Size Wire Binding Machine
Heavy Duty  Electric A3 Size  Wire Binding Machine
Heavy Duty  Electric A3 Size  Wire Binding Machine
Heavy Duty  Electric A3 Size  Wire Binding Machine
Model
CW430

Item specifics

Type
Wire Binding Machine
Operation
Electric
Max punching capacity
25sheets
Max binding capacity
380sheets (for both 2:1 &3:1)
Disengagement punching pin
50
Number of punching pin
50
Material
Aluminum
Certification
CE ,CETL ,SAA,CB SGS
Lifetime
300,000 times punching

Review

Description

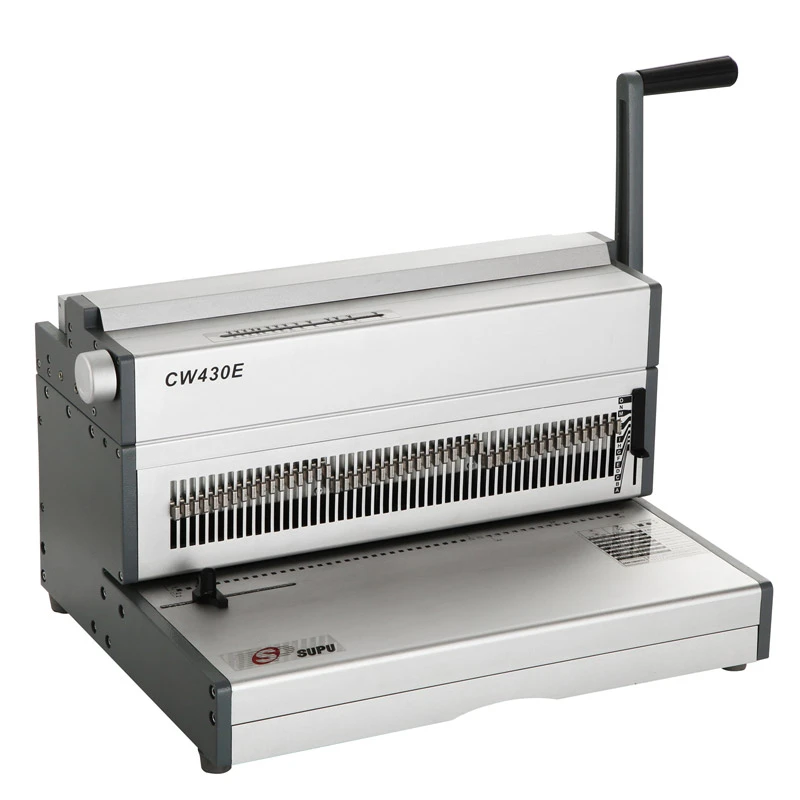

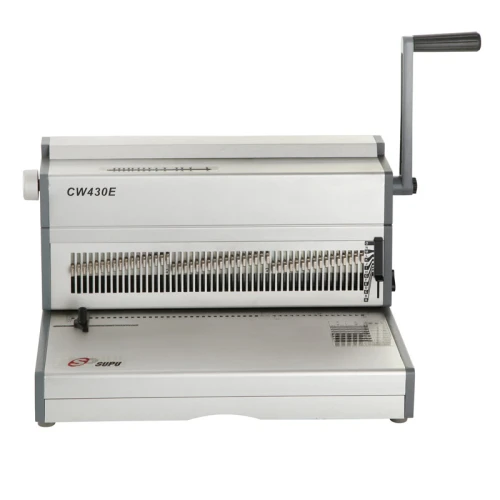

Heavy Duty Electric A3 Siz Wire Binding Machine CW430


Wire 3:1 pitch heady duty manual punching and binding machine widely  use in a medium sized office and professional copy center .

  • Binds up to 380 sheets
  • Strong punching capacity for 25 sheets each time
  • Electric punching by foot pedal
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • For formats: A5, A4,FC,Legal size ,A3 zie
  • Adjustable punching margin for different binding thickness
  • Large trash container
  • Measures the document or ring wire size
  • Parallel adjustment guarantees a perfect bind every time
  • Heavy duty construction & compact design
  • Lifetime testing for 300,000times
  • Certifcaiton with CE ,CETL ,CB ,SAA ,SGS



Max Punching Width

430mm

Punching Pitch

3:1 mm

Max Punching Capacity

25sheets

Max Binding Capacity

380sheets(From 4.8to 38mm)

Disengagement pin

50

Wire hanger

Yes

Dimension



Weight

31KG

Dimension with out carton

55X51X38CM

Weight

35KG

Material

Aluminum

Lifetime testing

300,000 times

Certification

CE,CETL ,SAA ,CB ,SGS


More punching charp are available


                                                                                                           50 Disgengagement Punching pins

Simple wire dize adjustable knob



Wire binding size from 4.8mm to 38mm



 Wire hanger crampmer



Strong and thick parallel closing bar


Durable adjustable design for wire closing system


CE


Life testing for 300,000 times punching and Guarantee for 100,000 times .

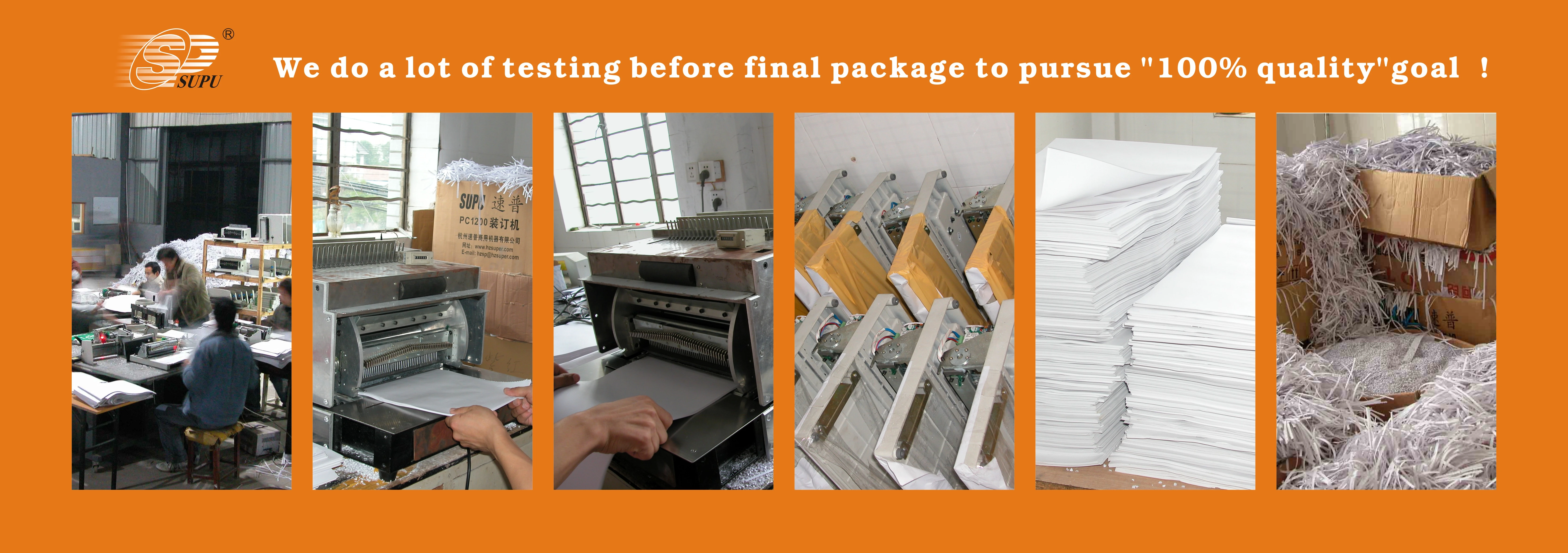

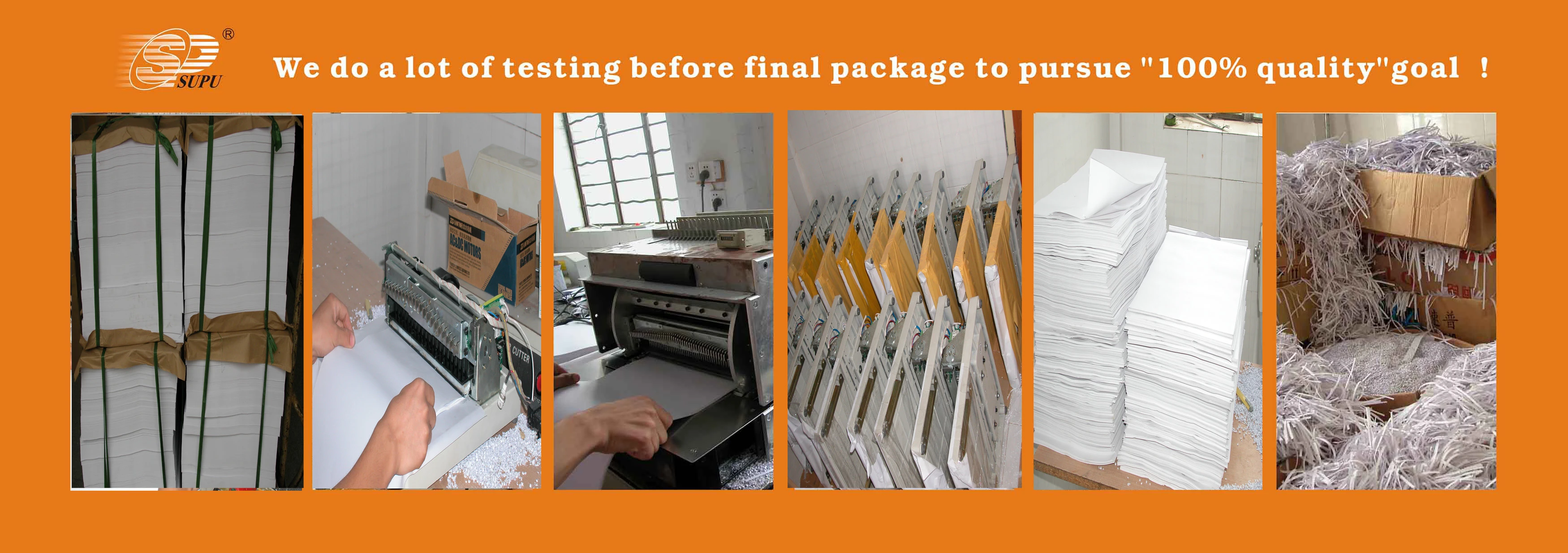

Each machine will testing 3000 times before package .
