YeaSUPU Calendary Binding Machine Wire Binding Machine 20rs Factory Model CW430

Group Wire Binding Systems
Min. Order 5 piece
Terms of Payment L/C, Western Union, T/T
Update Time 2019-08-07
Item specifics
Hole typeSquare
Punching thickness25sheets
Binding Thickness143sheets
Number of punch pins50
Disgagement punch pins50
  • Description
  • Product review

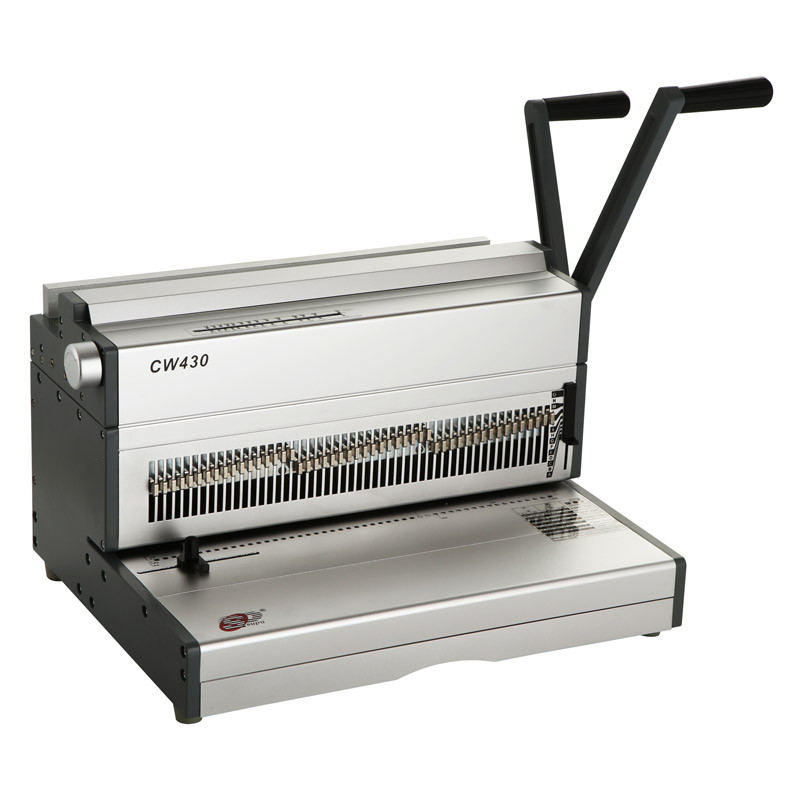

A3 Size  Manual Double wire binding machine CW430

A3 Size work width accept larger than A4 size paper, such as 14",legal size sheet and A3 Size sheetFull 50 disengageable punch dies with hard steel for clean punch hole4 positiondepth side margin can be adjustableA sticker on the machine guide you to select the correct wire dimeterManual Punch & BindingMachine with two seperated handle3:1 Wire Binding Machine ,3:1 wire punching and 3:1&2:1 wire bindingThe paper load is horizontal and has a margin guide to assist the user with the work being done. Maximum binding capacityup to 143 sheets with 3:1 wire,punch up to 25 sheets

  • Manual Punching up to 25 sheets 70g paper each time

  • Punching A4 A3  size paper.

  • Binding documents up to 143 sheets.

  • Use all sizes ring from 4.8-14.8 mm.

  • Side margin is adjustable.


  • Max. bind up 143 sheets

  • Width 430mm

  • Punch up to 2.5--4mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently

Model Name


Punch Width


Punching Thickness


Punch Width


Disengagement Punch pins


Number of punch pins


Binding Thickness




Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.

Products Details

Disengagement Punch Pins:50 adjustable punch pins about this machine,just pull it out easily
if you don't want to punch anyone hole.

Document measure:according to your files thickness to pick the right number of sheets to punch,don't exceed the maximum number of allowed

Knob of wire size: can be adjustable according to your sheet thickness and wire size

Selectable paper stop: according to you files' zise, select paper positon ,keeping sheet aligning

Punching handle and Binding handle:ensure your sheets are on the same line and feed the sheet horizon ,push the binding handle or the punching handle

Waste tray: large volume waste tray make you continuious work without empty punched times

 Binding Results:

We do a lot of testing before final package to pursue "100% quality" goal!
