Model
CW234

Item specifics

Origin
ZHEJIANG,CHINA
Width
300mm
Punching thickness
15 sheets
Pitch
8.47mm
Disengagement punch pins
34
Number of punch pins
34
Binding thickness
143sheets
color
white

Review

Description

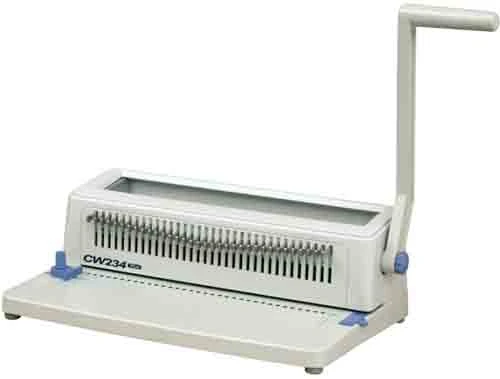

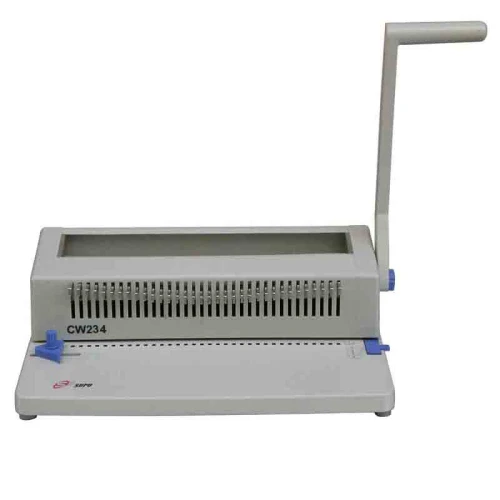

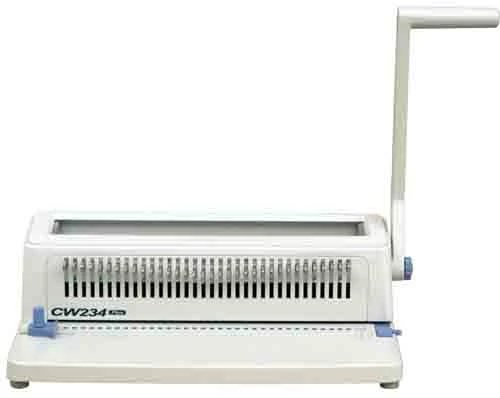

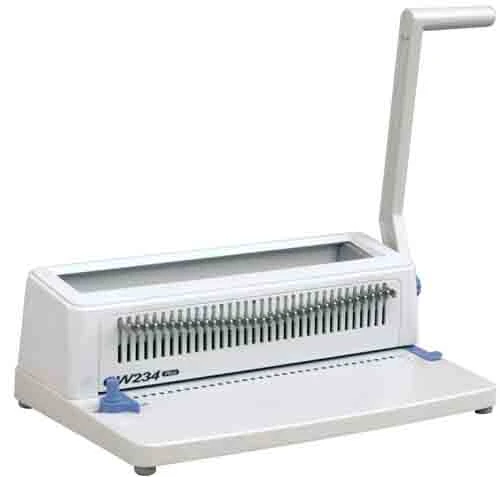

Manual wire binding machine CW234

Technology Data

MaxBind Capacity (20# paper)

143 Sheets

Max Punch Capacity (20# paper)

15Sheets

Binding Format

Wire

Punching Method

Manual

Binding Method

Manual

Punching Format (Vertical/Horizontal)

Horizontal

Punch and Bind Capability

Yes

Max Punch Length

300mm

Max Binding Length

300mm

Number of Punch Pins

34

Disengageable Die Pins

34

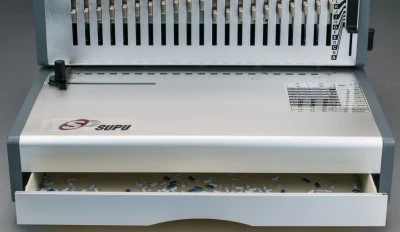

Waste Compartment

Yes

Side Margin Control

Yes

Product Detail

Please select correct wire for your document.

Insert the paper into the punch slot then pull the punch handle forward to punch paper.

Adjust the wire size according to the number of the paper.

When you adjust the adjustable knob,pls check the slot of wire closing to confirm the room of closing slot is correct.

Put the wire into the wire hanger.

Put the paper into the wire.

Take out the paper from the hanger.

Put the paper into the wire closing slot.

Push the handle forward to close the wire.

Finished.

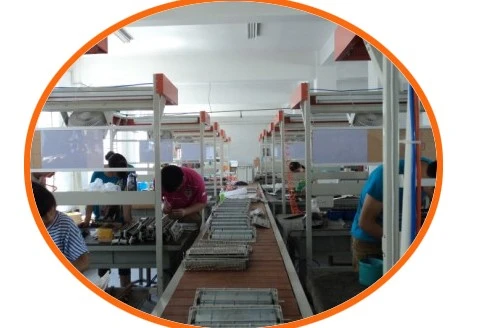

Assembly Line

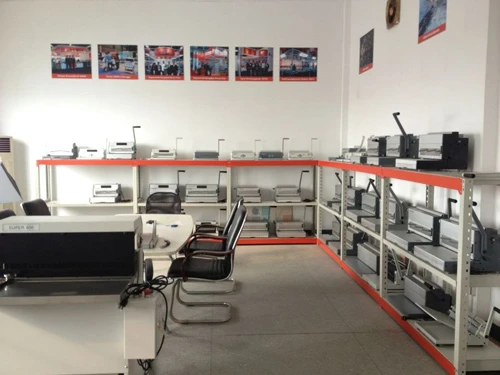

Sample Room

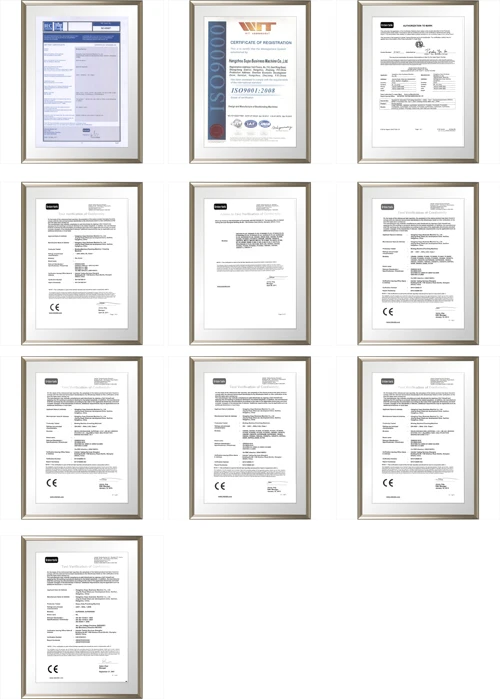

Certificate
