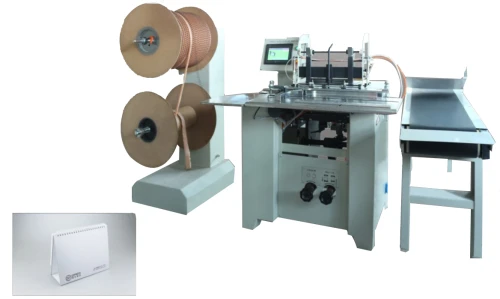

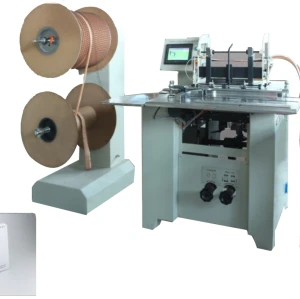

Automatic heavy duty double wire book binding machine（DCA-520）
- Price
- US $7500
- Model
- DCA-520
- MOQ
- 1 set
Item specifics
- Type
- Wire Binding Machine
- Operation
- Electric
- Power
- 1ph 220V 50/60HZ(other voltage on request )
- Machine Weight
- 300KGS
- Binding Capacity
- 1/4
- Max. Binding Length
- 520mm
- Air Pressure
- 5-8Bar
- Workbench Dimension:
- 680×310mm
- Main machine dimensions
- 0.8×0.75×1.15m
- Feeding reel dimensions
- 0.6×0.5×1.35m
Review
Description
Description:
New Design binding machine
Delivery conveyor included for tranfering the bond documents
Controlled by PLC,easily to setting and adjusting .
Designing and manufacturing size closing moulds various loops diameters Can be processed,and the changing of the moulds is fast and esay.
Optinal hanger attachment.
Coil inserting and cutter automatic without a plier by hand
Coil inserting and cutter automatic without a plier by hand
Work Speed: up to 1000 Volume/hour(Effective speed depends on operator's ability and on the item to be bound)
air pressure: 5-8KGF
Platform demension: 680*310mm
Binding Capacity: 1/4" - 3/4"
Binding Capacity: 1/4" - 3/4"
The max binding width : 520mm
Power: 1ph 220V 50/60HZ(other voltage on request )
machine dimension : main machine :780*730*1150mm
Feeding reel: 600*500*1320mm
N.W: 300kg
This machine is used for binding double wire books, notebooks, wall calendarsand so on, it has the function of automatic cutting ,counting loop s-counting,skip binding and closing .
More details:
Details information:

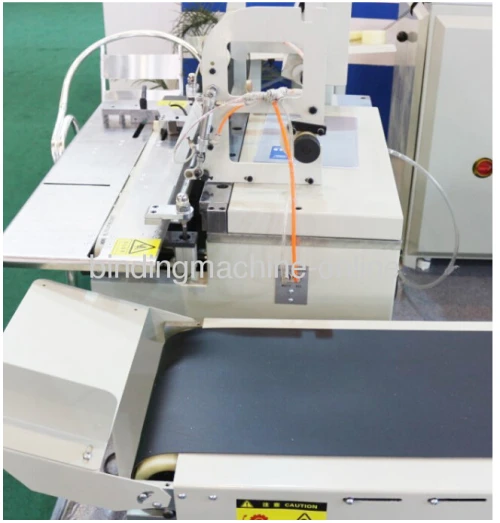

Convert belt included for transfer the bond document to the covert tray

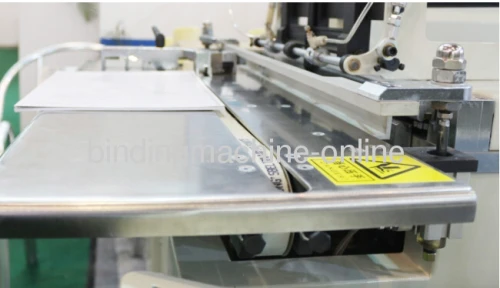

The wide work platform make you binding comfortable
A convert tray aid to transfer the bond documents, save your time and enhance poroductivity,
PLC control, it's easy adjustable
