Automatic wire binding machine
- Model
- DSB360
Item specifics
- Binding machine
- Automatic wire binding machine
- Binding width
- 360mm
- Binding thickness
- 1/4'' -1 1/4''
- Binding speed
- Up to 1000 Volume/Hour
- Air Pressure
- 5-8Kgf
Review
Description

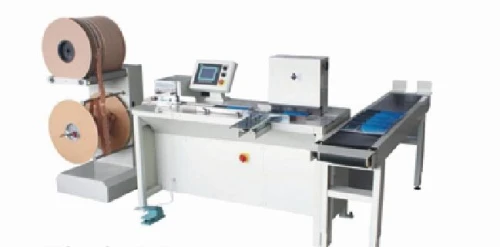

Automatic Double Loops Wire Binding Machine
This automatic wire binding machine is used for binding double wire books, notebooks, wall calendars, etc. It can bind 1/4" -1 1/4" without changing binding tools. With the integration of automatically unwinding the spool, loops cutting, conveying and closing, it increased the production efficiency and lowered the cost remarkably.
| Binding thickness | 1/4'' -1 1/4'' |
| Binding width | 360mm |
| Binding speed | Up to 1000 Volume/Hour |
| Air Pressure | 5-8Kgf |
Advantages:

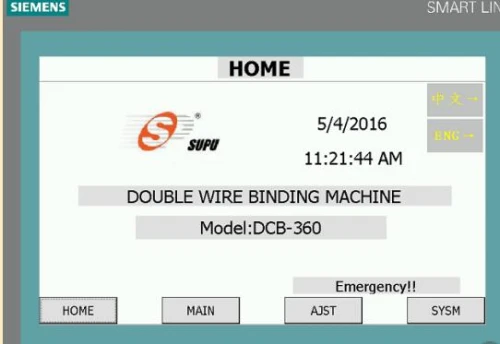

◆Controlled by PLC.Easy to set and adjust.
◆There are no tools to change as the press is adjustable for all the diameters.
◆Especially suitable for binding the notebooks which the cover is bigger than inner sheet
Technical data
Speed:Up to 1000 Volume/Hour
Air Pressure:5-8Kgf
Wire Diameter:1/4'' -1 1/4''
The max width of binding:360mm(14.2'')
Electric power:1PH 220V 50/60HZ (other voltage on request)
Machine Dimensions
Main machine:2020*950*1250mm
Feeding reel:780*560*1200mmx
Conveyor:2160*370*700mm
Net weight:300Kg
Pay attention to :
☆DCB- 360 have no mold ,include convey belt,Wire diameter :1/4''-1 1/4''
☆Voltage specification : 1PH 220V 50/60HZ (other voltage on request )
