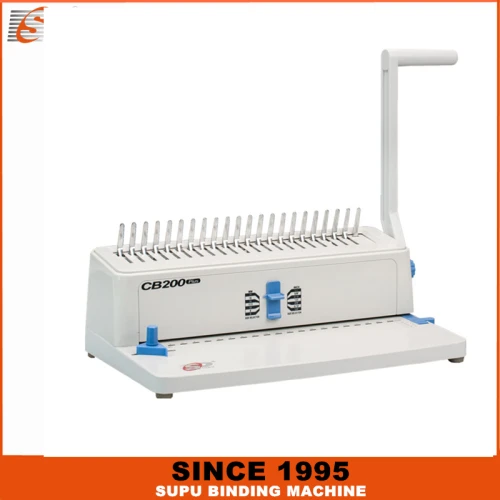

SUPU Office-Use Comb Binding Machine For Office And Factory Model CB200 PLUS
SUPU Office-Use Comb Binding Machine For Office And Factory Model CB200 PLUS
SUPU Office-Use Comb Binding Machine For Office And Factory Model CB200 PLUS
SUPU Office-Use Comb Binding Machine For Office And Factory Model CB200 PLUS
SUPU Office-Use Comb Binding Machine For Office And Factory Model CB200 PLUS

SUPU Office-Use Comb Binding Machine For Office And Factory Model CB200 PLUS

Model
CB200 PLUS

Item specifics

Power
Manual
Width
300mm
Pitch
14.25mm
Hole type
Rectangle
Punching thickness
15sheets
Binding Thickness
500sheets
Number of punch pins
21
Disgagement punch pins
0

Review

Description

Specificaiton
Technical Data

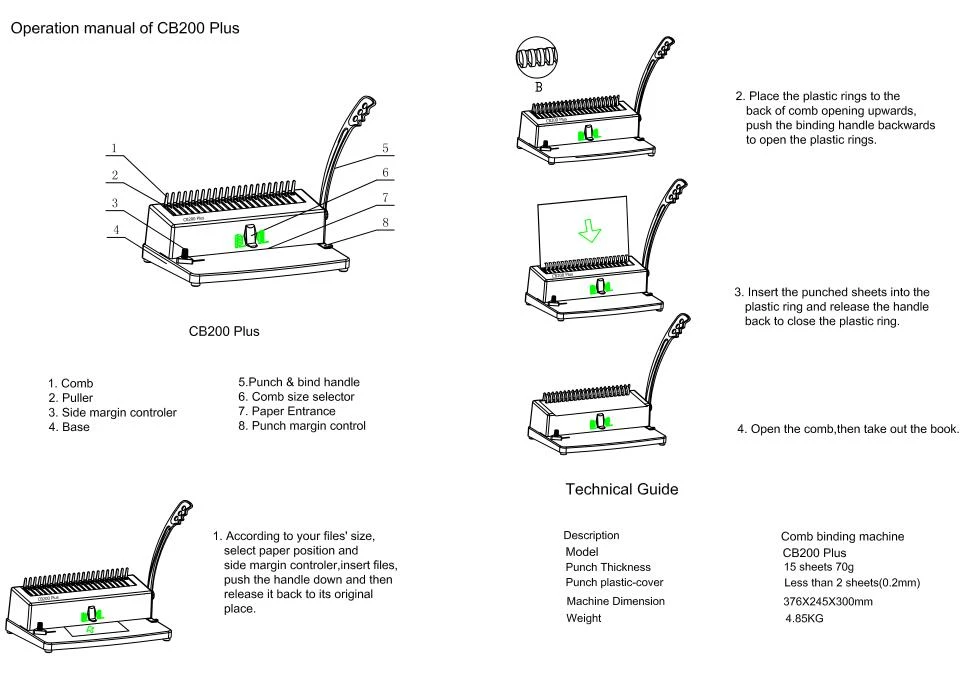

Operation
Certificate
Testing

Office Use Manual Plastic Comb Binding Machine CB200 plus

We are the professional binding machine manufacturer in China. Plastic Comb Binding is still the most popular binding method today! Plastic combs are widely used by schools and businesses, and are also easy for home use. Comb Binding Machines are easy to use and affordable. Plastic Comb Binding Machines are available in either manual or electric punch. An electric punch machine is more common in the office and school marketplace as it alleviates operator fatigue on larger binding jobs.

  • Manual Punching up to 15 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 500 sheets.

  • Use all sizes of plastic comb from 6mm to 50mm.

  • Side margin is adjustable.

Maximum:

  • Max. bind up 500 sheets

  • Width 300mm

  • Punch up to 15 sheets

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently

  Power requirement  Manual
  Max. punching width  297mm
  Max. punching thickness  15sheets
  Punching operation  handle
  Punch dies available   2:1 plastic comb
  Hole type  ▄    (rectangle)
  Disengagement punch pins  No
  Bespoke dies            No
  Variable margin depth  3，4，5，6  （mm）
  Die changeover time  /
  Machine dimensions L x W x H  376 x 245 x 300 (mm)
  Machine weight  6 kgs
  Cover materials & Technology  ABS plastic
  Punch election knife & Technology  Independent knife holder & Nickel plating process
  Punching pins & Technology  High-strength alloy steel
  Paper entry panel & Technology  One-piece High alloy steel
  Motor & Technology  No


We do a lot of testing before final package to pursue "100% quality" goal!

recommend

SUPU Heavy Duty 14

SUPU Heavy Duty 14 " Manual Comb Binding Machine Model CB360

Model : CB200 PLUS

book comb binding & punching machine CB300

book comb binding & punching machine CB300

Model : CB200 PLUS

SUPU Heavy Duty A3 Size Manual Comb Binding Machine Model CB430

SUPU Heavy Duty A3 Size Manual Comb Binding Machine Model CB430

Model : CB200 PLUS

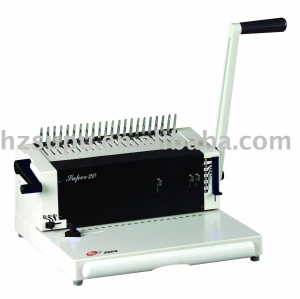

Comb binding machine SUPER20A
