SUPU Heavy Duty Paper Punching Machine SUPER600
SUPU Heavy Duty Paper Punching Machine SUPER600
SUPU Heavy Duty Paper Punching Machine SUPER600
SUPU Heavy Duty Paper Punching Machine SUPER600

SUPU Heavy Duty Paper Punching Machine SUPER600

Model
SUPER600

Item specifics

Power
1.5KW
Width
600mm
Pitch
on request

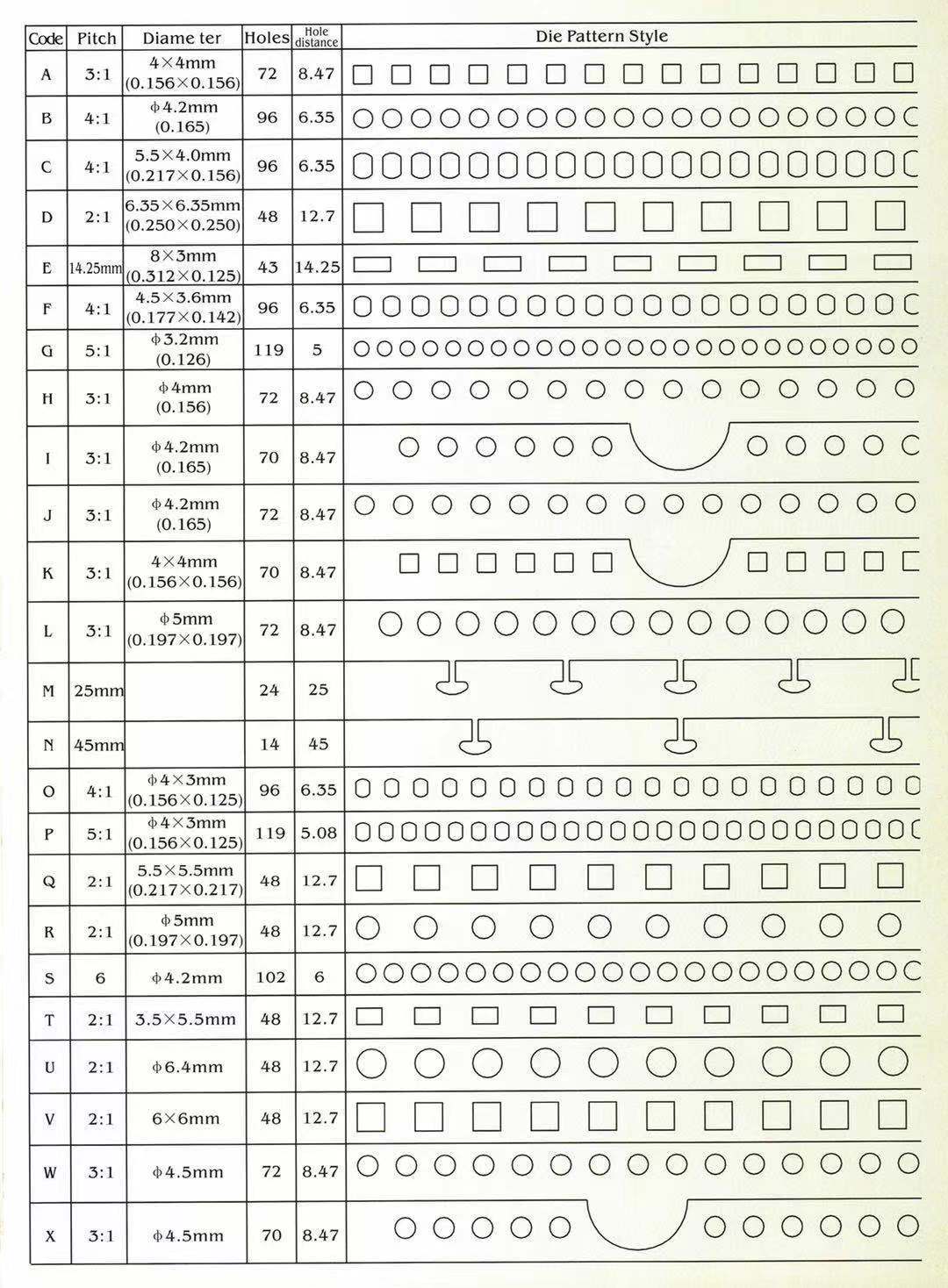

Hole type
on request
Punching thickness
5mm
Binding Thickness
on request
Number of punch pins
on request

Review

Description

Specification
Technical data
Operation
Certification
Vdieo

  • HEAVY DUTY PAPER HOLE PUNCHING MACHINE (SUPER600)

    SUPER600 heavy duty paper punching machine is a semi-automatic electric paper punching machine  which can be used in industry, notebook producing factory ,enterprise and large organizations with firm design.It has advanced motor reducer and special-made mechanical clutch. Motor can run continuously for 24 hours and punching controlled by foot pedal which is easy and safe for operation. Interchangeable die is easy and fast, which can punch various holes.Closing double wire is also available by changing punching dies into closing die and can close any size of double wire. Punching depth margin can also adjustable from 2mm to 6mm which make this machine perfect.

    • Can change dies, choose different hole

    • Electric wire closing system change closer

    • Easy operation by foot pedal

    • Can closer wire size from 3/16 "(4.8mm ) to 1 1/2" (38mm )

    • 24 hours continuous working

    Maximum:

    • Max. bind up 318 sheets

    • Max. bind up 180 sheets

    • Max. bind up 500 sheets

    • Width 600mm

    • Punching up to calendar

    • Max.thickness 2.5--4mm

    Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free High capacity waste container requires emptying less frequently


Model Name

SUPER 600

Punch Width

600mm

Punching Thickness

5 mm

Punching speed

150 time/minute

Closer wire

4.8mm—38mm

Dimension

1000*640*1110 mm

Weight

230kgs

Motor

230V,50HZ/120W
110V,60HZ/120W

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


PRODUCT DETAIL


  • Depth margin adjustment.


  • Adjust the edge guide


  • Put the waste paper into the die


  • Put down the foot pedal


  • Finish the punching



  • Remove die metal panel


  • Remove the die


  • Install the closer and adjust size


  • Insert the documents into the closing bar ,ready for binding
