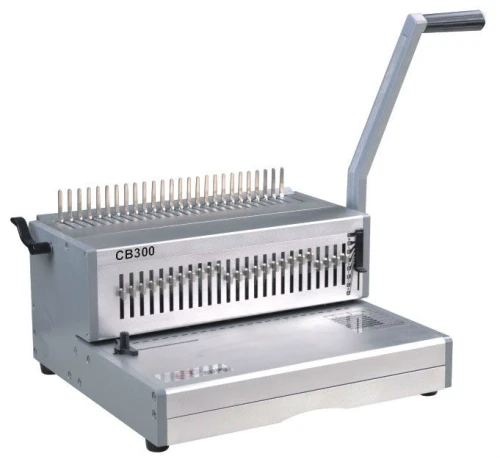

Manual Heavy Duty A4 Size Comb Binding Machine CB300

CB300 heavy duty plastic comb binding machine is binding for A4 size paper and cover .This is easy  to use, so can save a lot of time,the material is aluminum, manual comb binding machine offers the user a professional binding result  with  your documents.It has punch cancellation so it can be used for 20 and 21 ring combs.

Manually punches up to 35 sheets at a time.

  • Manual Punching up to 35 sheets 70g paper each time

  • Punching A4 format,11'' size paper.

  • Binding documents up to 500 sheets.

  • Use all sizes of plastic comb from 6mm to 50mm.

  • Side margin is adjustable.

Maximum:

  • Max. bind up 500 sheets

  • Width 300mm

  • Punch up to 2.5--4mm

Document measure to determine which comb size to be used All aluminium construction make it durable and many years worry free Hign capacity waste container requires emptying less frequently

Model Name

CB300

Punch Width

300mm

Punching Thickness

32sheets

Punch Width

14.25mm

Disengagement Punch pins

21

Number of punch pins

21

Binding Thickness

500sheets

Motor

No

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 - 2.5 mm.


  • Measure the thickness of the document and select the appropriate apron specification according to the letter

  • Select the correct comb diameter using the document measure


  • Select the correct back margin depth for the number of sheets


  • Select the correct punch profile for the sheet size. Select releasable dies as appropiate


  • Punch sheets in small batches that do not overload the machine of the use
    (Max 21 sheets)


  • The machine punching when use handle


  • Punch front and back covers first


  • Load punched sheets directly onto the opened comb, Starting with the front of the document.


  • Push the comb lever backwards to close the comb and remover the bound document.


We do a lot of testing before final package to pursue "100% quality" goal!

recommend

SUPU Plastic Comb Binding Machine Model CB221 Plus

SUPU Plastic Comb Binding Machine Model CB221 Plus

Model : CB300

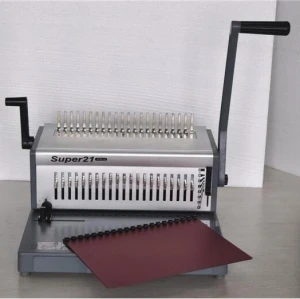

SUPU Heavy Duty Manual Comb Binding Machine Model SUPER21 PLUS
